our industry advantage

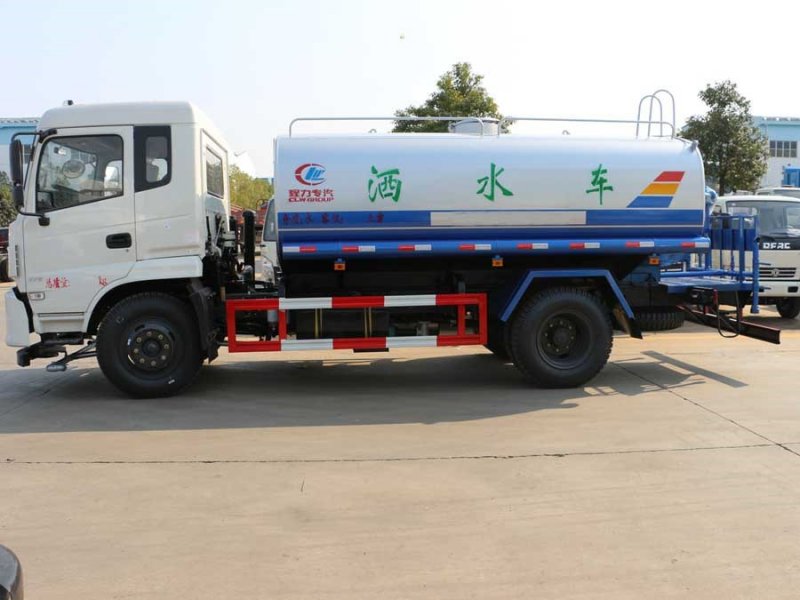

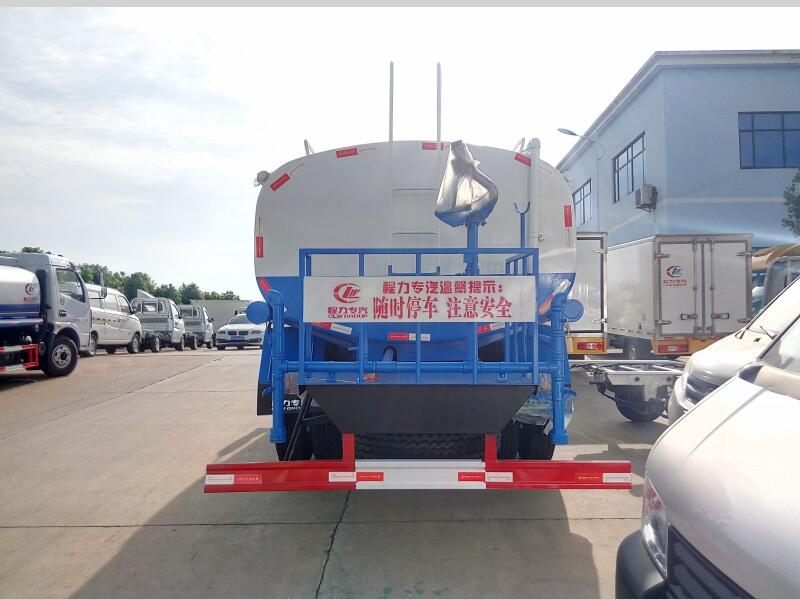

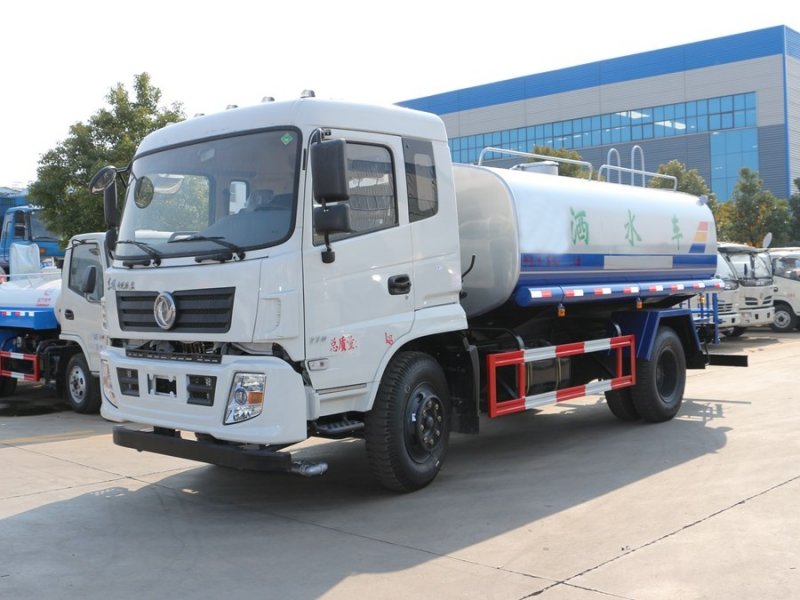

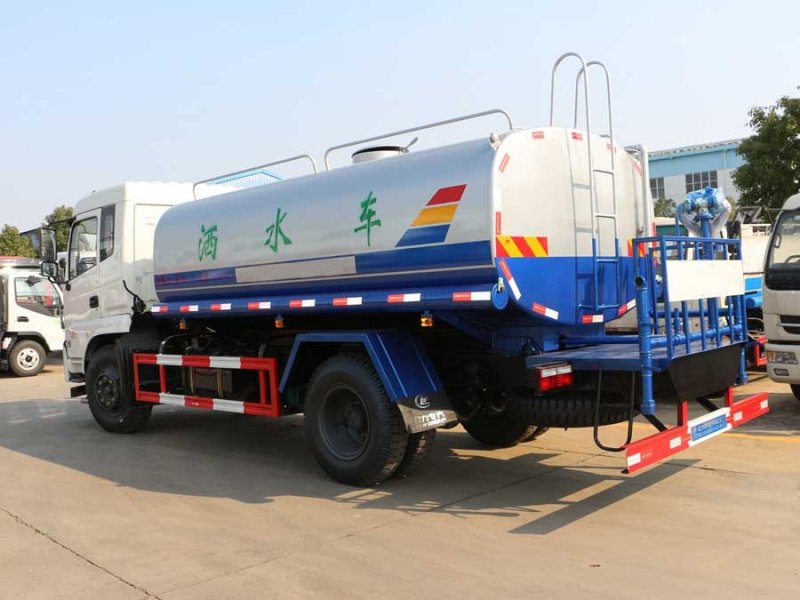

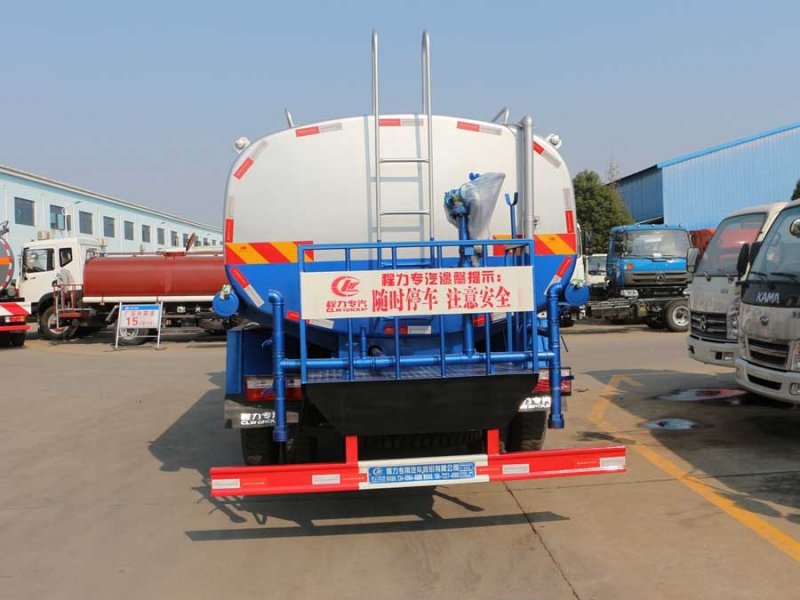

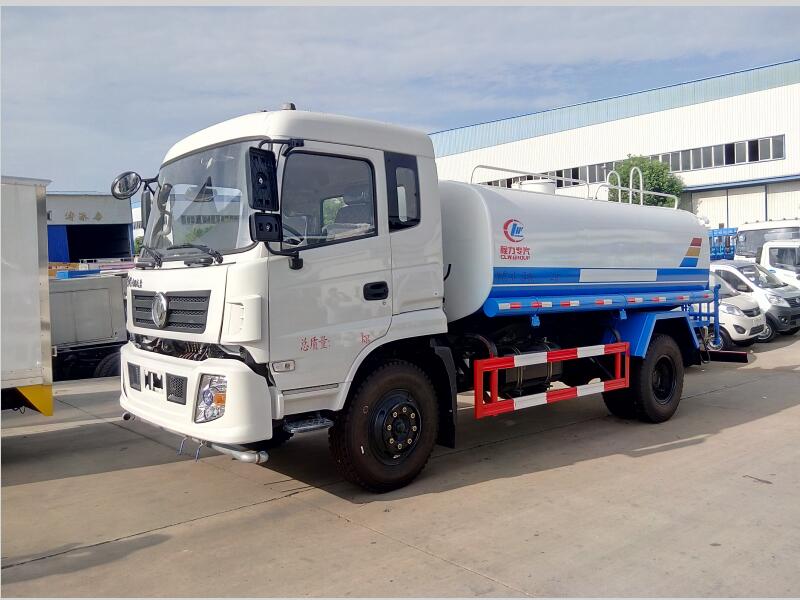

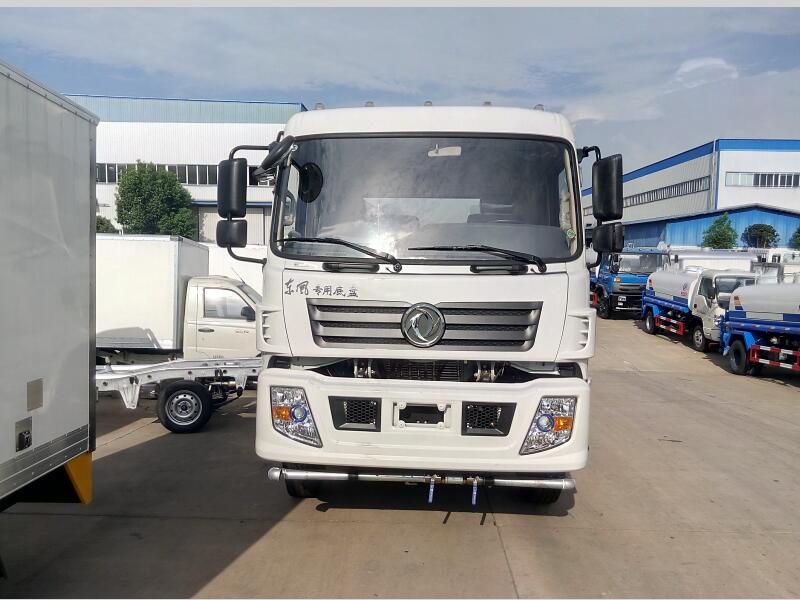

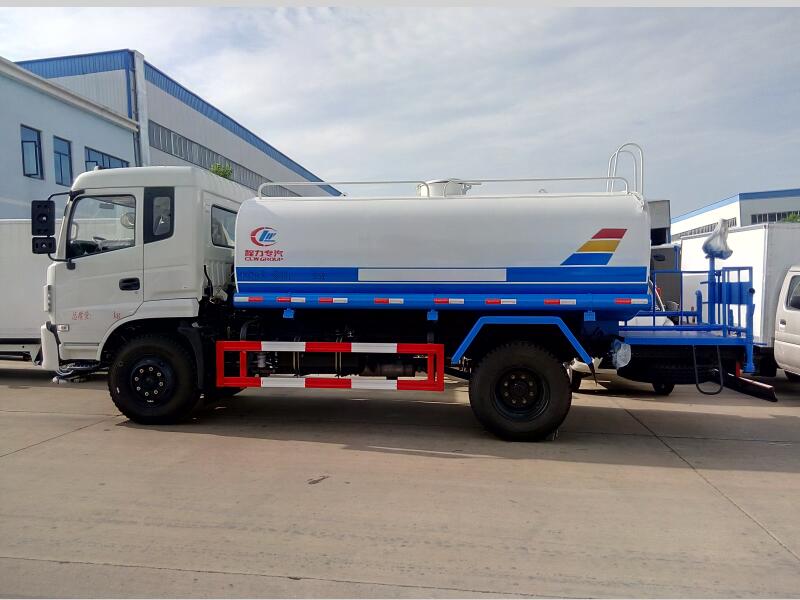

vehicle photo show
product parameters
| Tank Volumn | 15000L | Sprinkler Width | 15Meter |
| Water Cannon Width | 35Meter | Vertical Suction | 7Meter |
| Water Pump flow | 20m³/hour | Water Pump | 90 |
| Gross Weight(Kg) | 15800 | Payload(Kg) | 8805 |
| Curb Weight(Kg) | 6800 | Truck Dimension(mm) | 8340×2500×3200 |
| Tank dimension(mm) | 4800×2200×1350 | Cab Seats | 3 |
| Chassis Specification | |||
| Chassis Brand | Dongfeng | Chassis Model | EQ1160GD5DJ |
| Alex No | 2 | Tires | 7 |
| Wheelbase (mm) | 4500 | Tire Specification | 9.00-20 / 10.00-20 |
| Gearbox | 8-Speed | Front/Rear Axle | 5/10吨 |
| Fuel Type | Diesel | Brake | Air Brake |
| Engine Model | Engine Manufacture | Displacement(ml) | Power |
| ISB170 50 ISB190 50 | Dongfeng Commins Engine Co.,Ltd Dongfeng Commins Engine Co.,Ltd | 5900 5900 | 170 190 |
| Configuration | |||
| Stansard Configuration | 1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc. | ||
| Option Configuration | AC,Sprayer | ||
Water tank truck can be used for spraying water, suppressing dust, high and low spraying, pesticide spraying, rail and construction washing and other functions, but also has the function of water transport, milk transport, water drainage, emergency fire and so on.

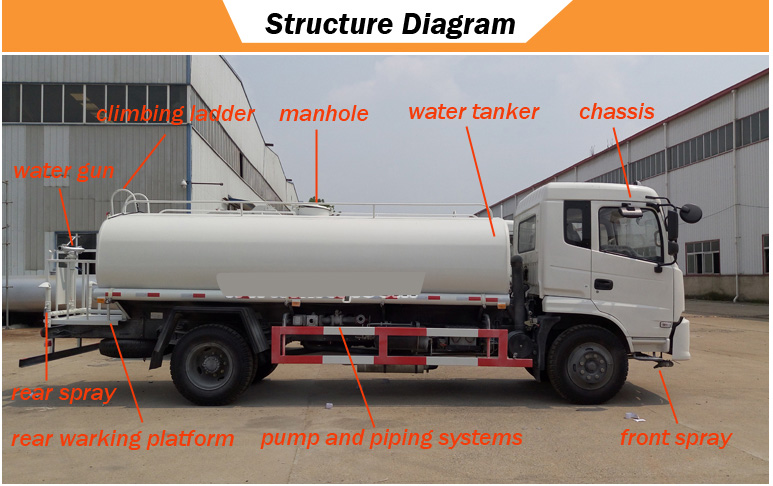

Water tank truck is composed of automobile chassis, and out of the water system and tanker. According to the different use of the environment and the purpose of a variety of spraying and water transport function. Multifunctional sprinkler set a variety of functions as one, generally can be used by the user requirements of special restructuring.
