our industry advantage

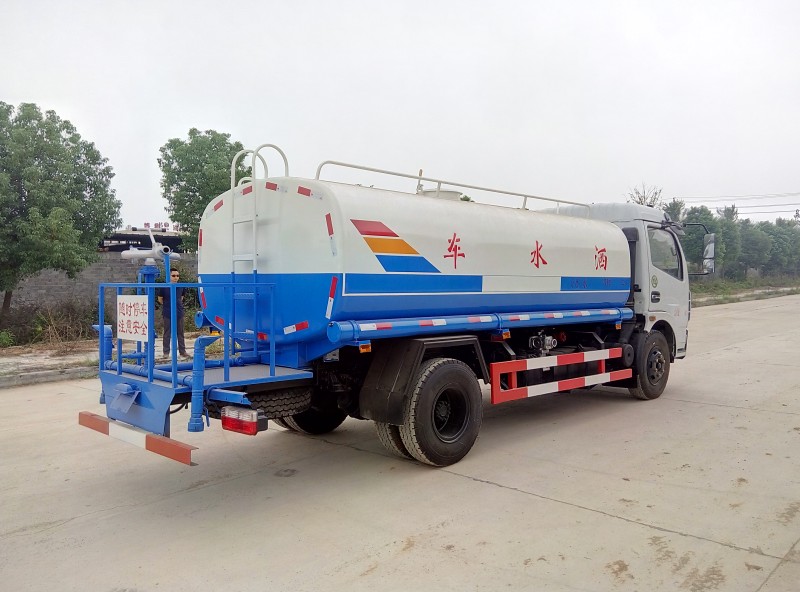

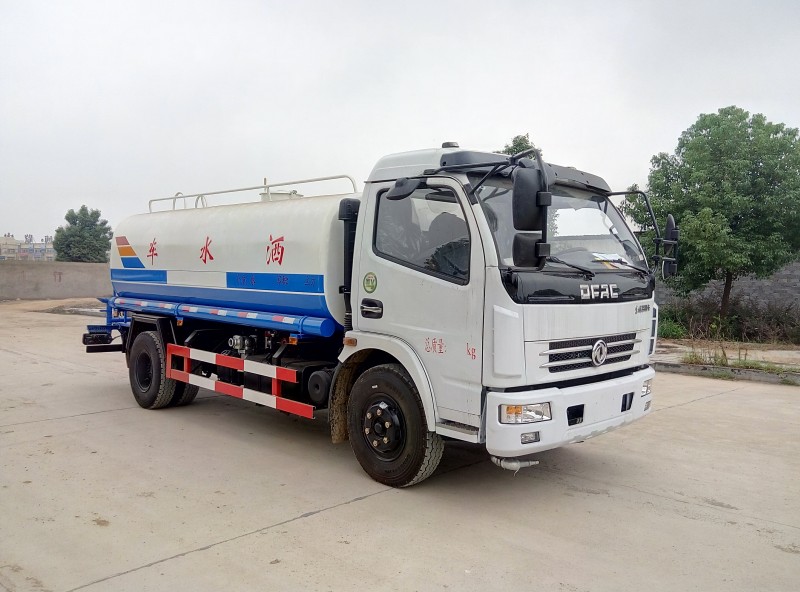

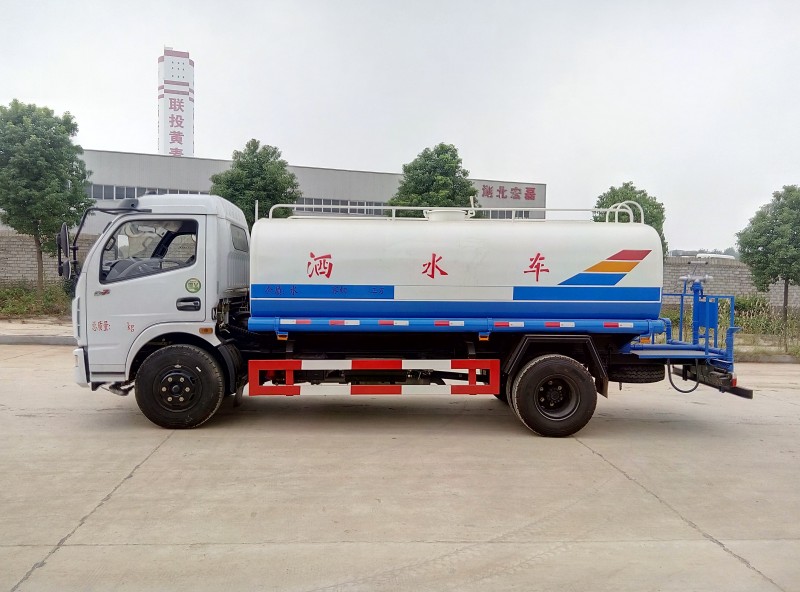

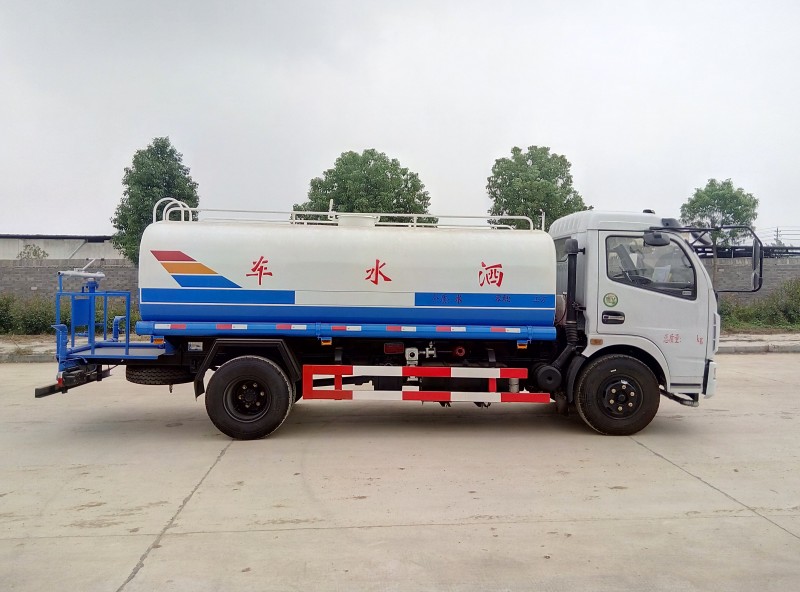

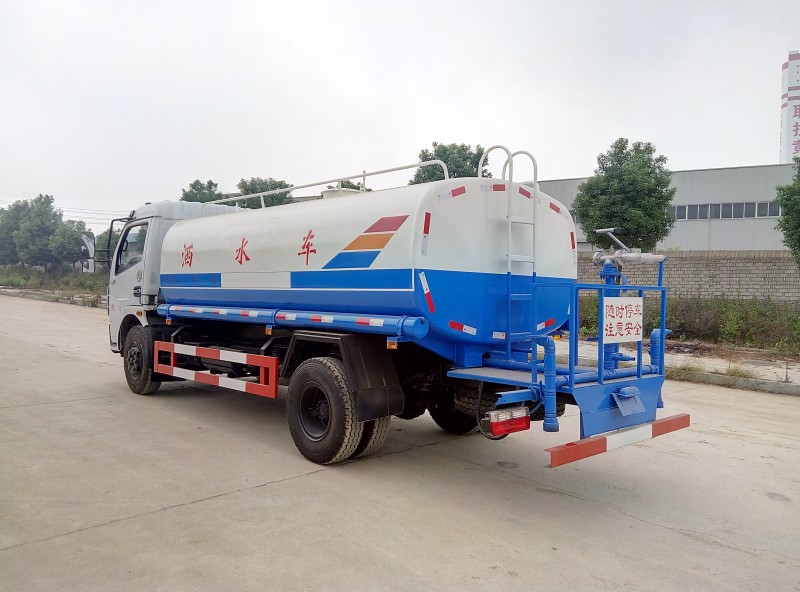

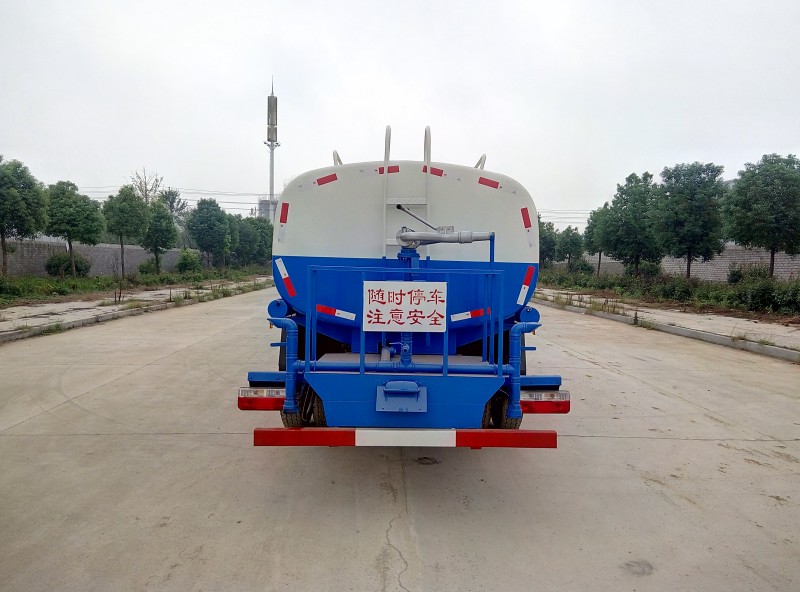

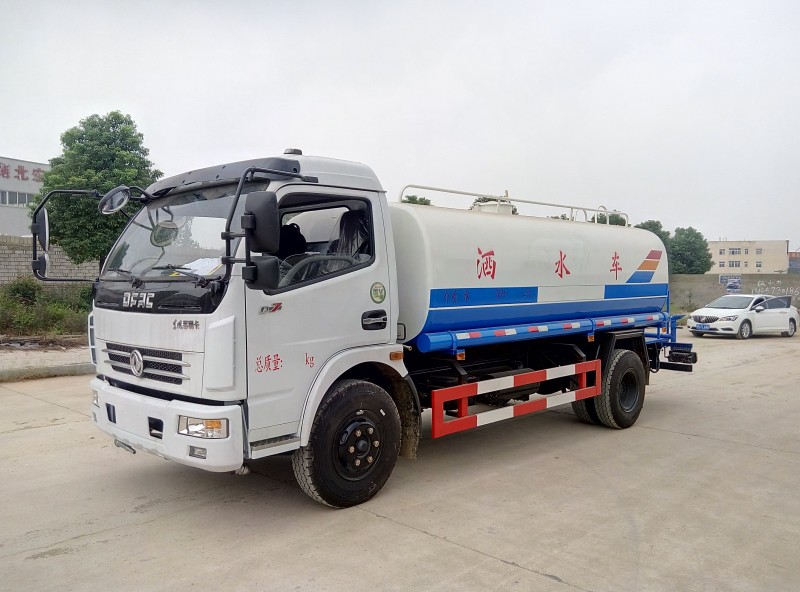

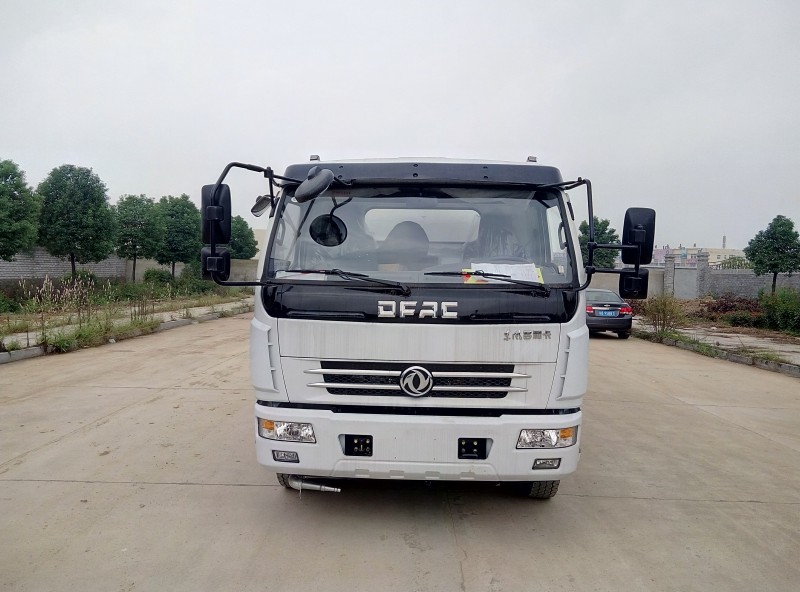

vehicle photo show
product parameters
| Tank Volumn | 8000L | Sprinkler Width | 15meter |
| Water Cannon Width | 30meters | Vertical Suction | 7米 |
| Water Pump flow | 20m³/hour | Water Pump | 90 |
| Gross Weight(Kg) | 11450 | Payload(Kg) | 6500 |
| Curb Weight(Kg) | 4755 | Truck Dimension(mm) | 6920×2130×2500 |
| Tank dimension(mm) | 4200×1900×1250 | Cab Seats | 3 |
| Chassis Specification | |||
| Chassis Brand | Dongfeng | Chassis Model | EQ1110SJ8BDC |
| Alex No | 2 | Tires | 7 |
| Wheelbase (mm) | 3800 | Tire Specification | 8.25R20 |
| Gearbox | 6-speed | Front/Rear Axle | 2.7/5tons |
| Fuel Type | Diesel | Brake | Air Brake |
| Engine Model | Engine Manufacturer | Displacement(ml) | Power |
| CY4SK251 | Dongfeng Chaoyang Diesel Engine Co.,LTD | 3856 | 156 |
| Configuration | |||
| Stansard Configuration | 1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc. | ||
| Option Configuration | AC,Sprayer | ||

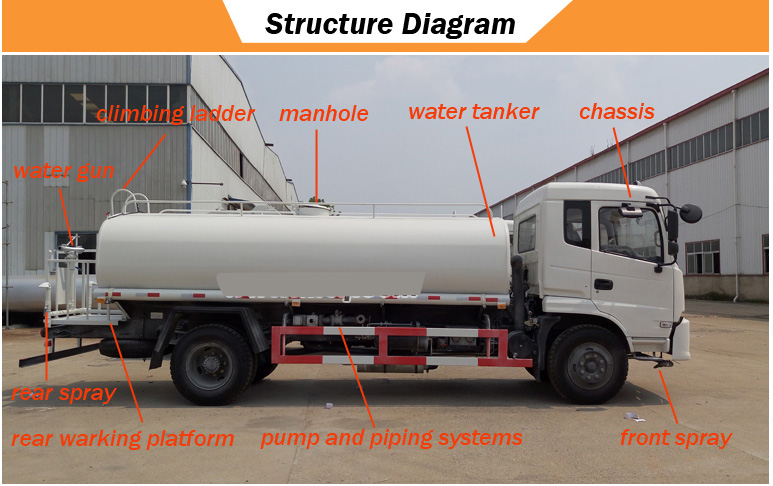

2.Product Structure
Water Tank Truck is suitable for various pavement washing, trees, green belt, green lawn, roads, construction of factories and mines, high-altitude construction flushing.
Water tank truck can be used for spraying water, suppressing dust, high and low spraying, pesticide spraying, rail and construction washing and other functions, but also has the function of water transport, milk transport, watering grass ,and cleanning the road.
