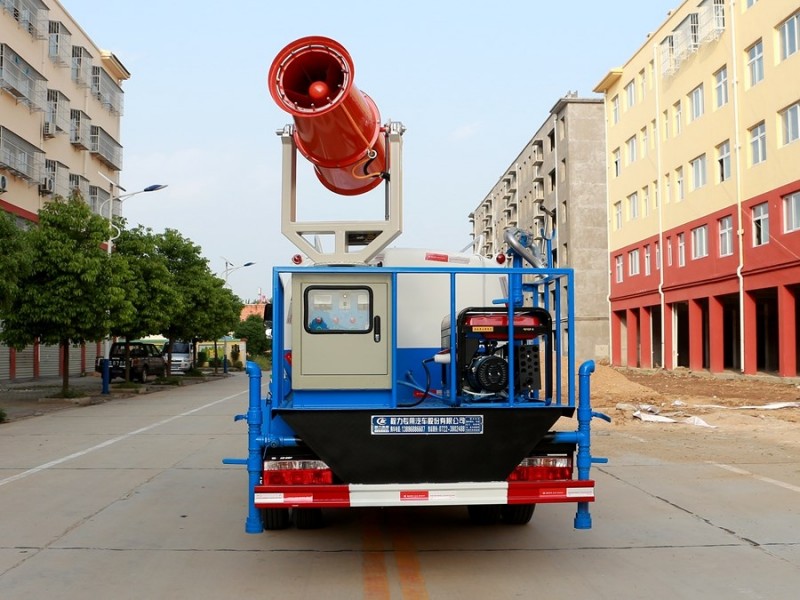

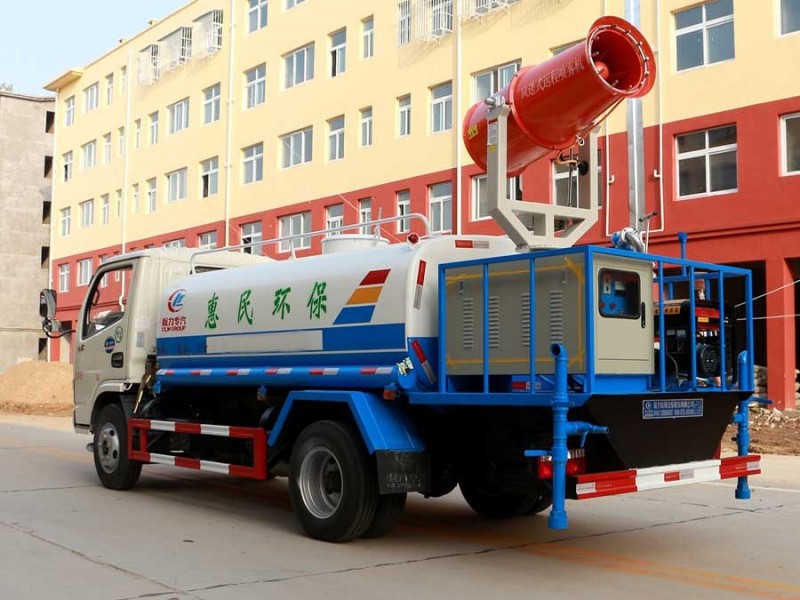

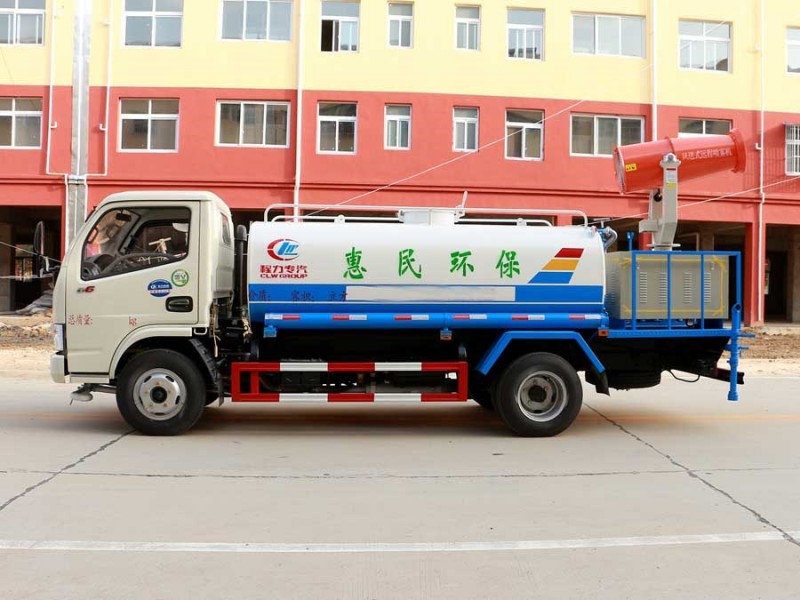

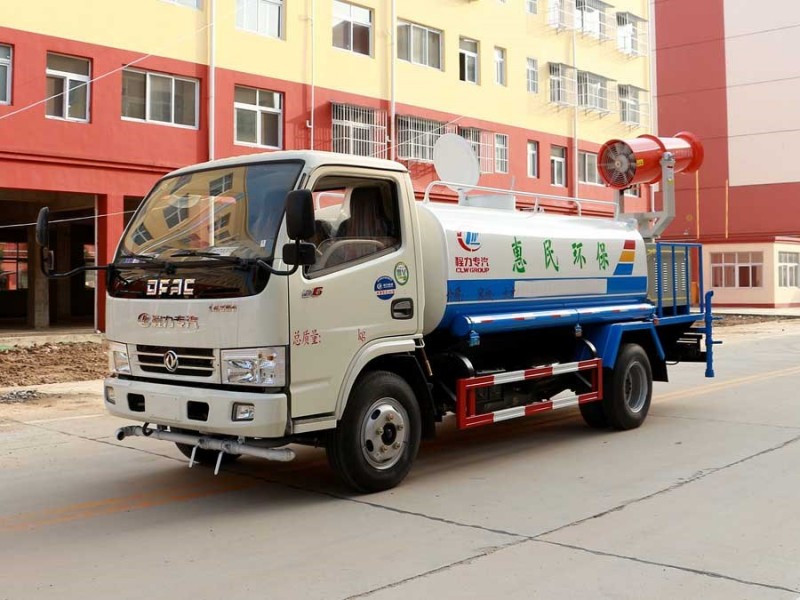

Dongfeng 5000L Water Spray Truck

Tank Volume	5000L	Sprinkler Width	15Meter
Water Cannon Width	30meter	Vertical Suction	7Meter
Water Pump flow	20m³/hour	Water Pump	90
Gross Weight(Kg)	7360	Payload(Kg)	3870
Curb Weight(Kg)	3360	Truck Dimension(mm)	5990×1980×2390
Tank dimension(mm)	3400×1600×1100	Cab Seats	3
Chassis Specification
Chassis Brand	dongfeng	Chassis Model	EQ1070SJ3BDF
Alex No	2	Tires	7
Wheelbase (mm)	3308	Tire Specification	7.00R16
Gearbox	5-speed	Front/Rear Axle	1.8/3.5tons
Fuel Type	Diesel	Brake	Air Brake

Engine Model	Engine Manufacture	Displacement(ml)	Power
CY4BK551	Dongfeng Chaoyang Diesel Engine Co.,LTD	3707	10

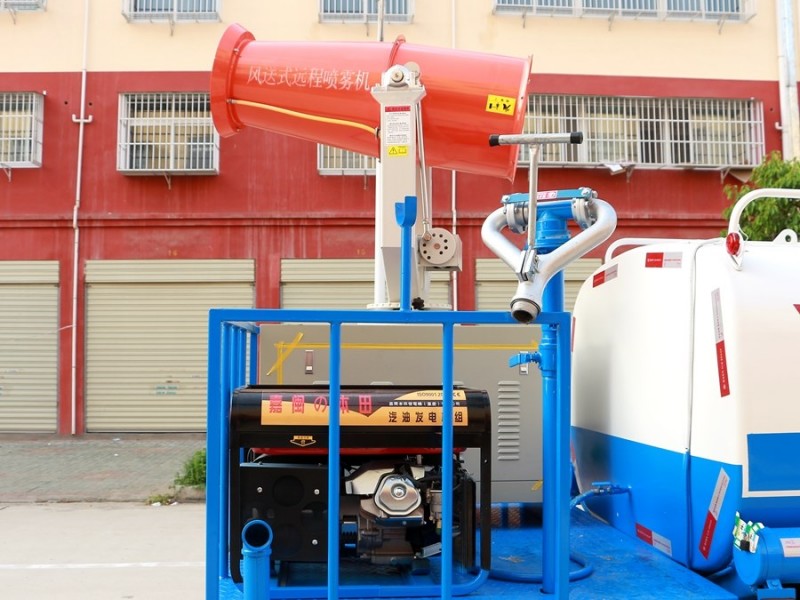

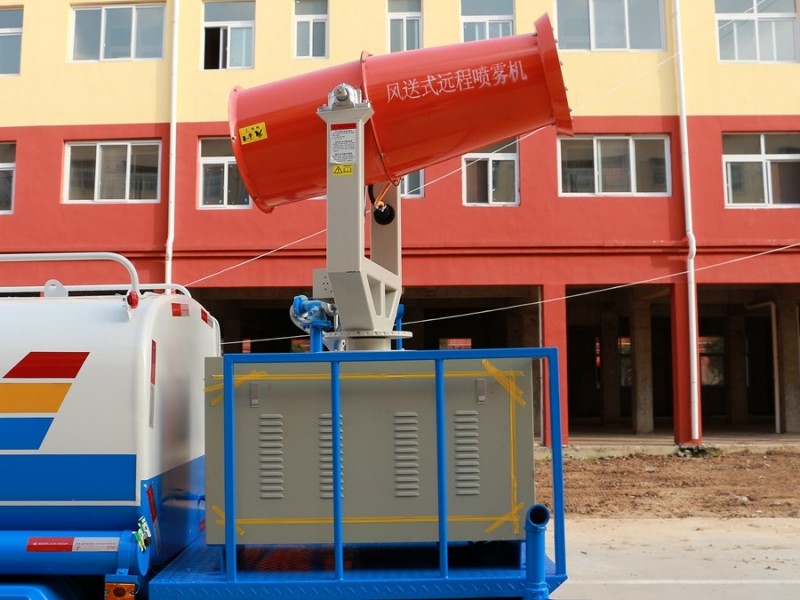

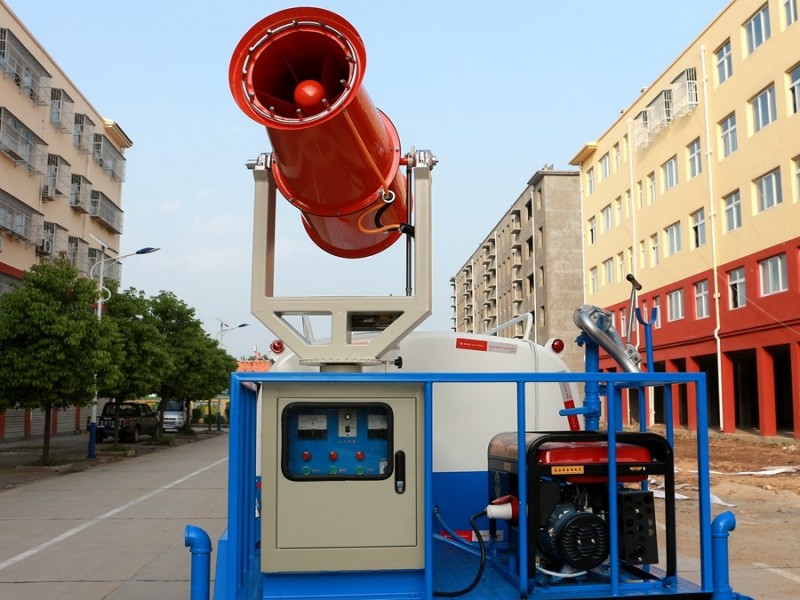

Sprayer Model	LH30	Maximum Range	30-35
Sprayer Flow	18-28	Generator Power	6.5KW
Rotation Angle	±360°

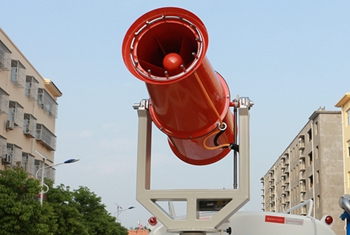

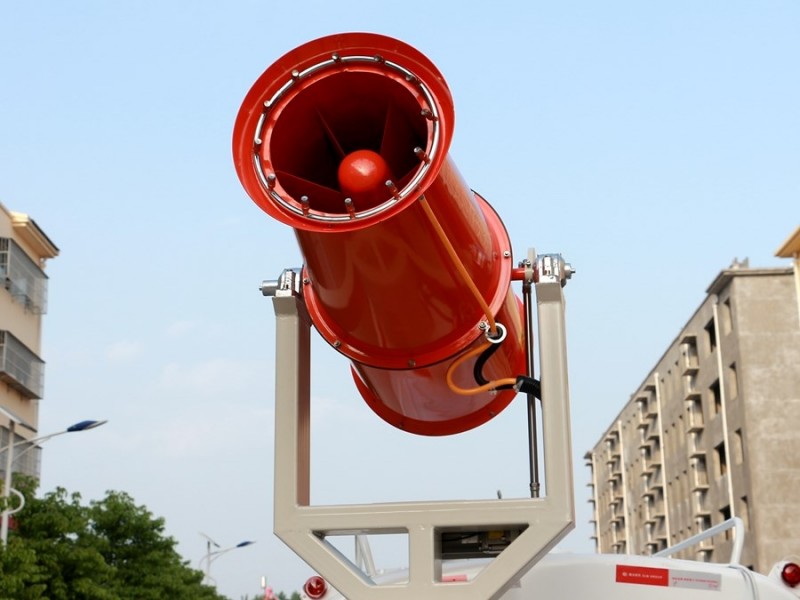

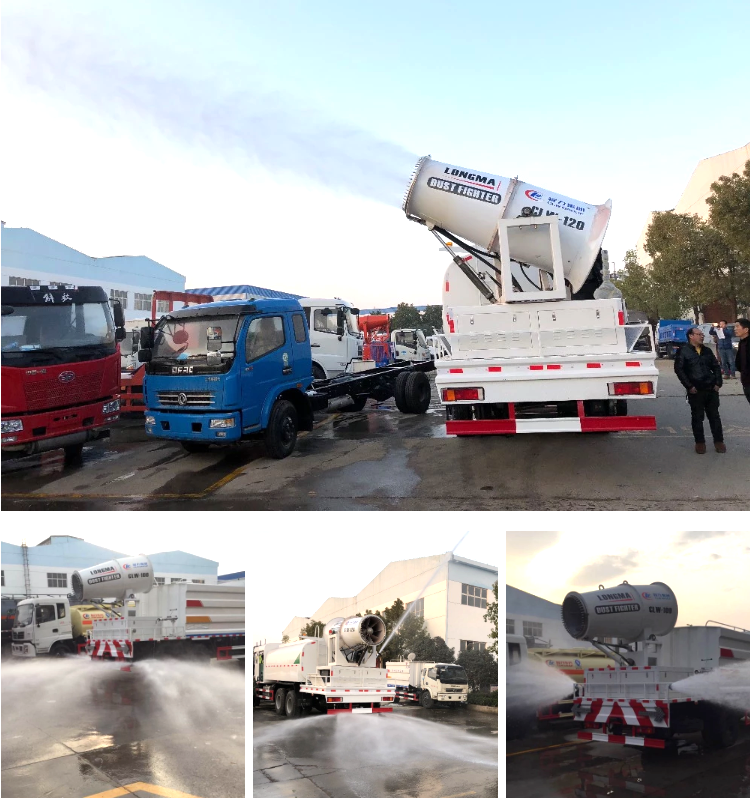

Wide Sprayer Range The Maximum Range can be 30meters The horizontal rotation angle of the sprayer is 360 degrees,be used to decrease the dust in village,and pesicide spraying。

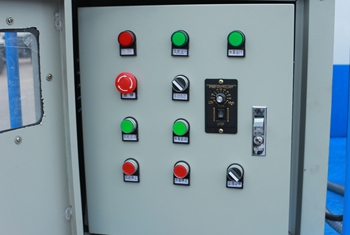

	Operation intelligentization Manual automatic integrated， operation is convenient

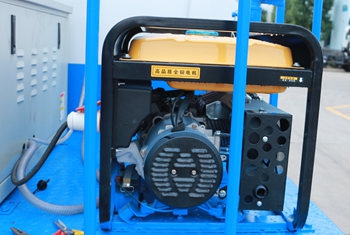

Low oil consumption Diesel generating drives the sprayer working.

Range of Application:

Water Spray truck is applicable to water mist, dust suppression and dust removal in large construction sites such as wharf mine and urban demolition in coking plant of cement plant of open-pit coal mine and steel plant of environmental protection industry. As well as urban PM2.5 air pollution control; Spray disinfection in public places and landfill sites.

1, Complete vehicle equipment, compact structure, reasonable layout, fine workmanship of components, perfect product configuration, good operation performance;

2, When the fog particles with a long range of coverage area are in small contact with the floating dust, a wet mist body is formed, which can quickly suppress the dust precipitation.

3, A wide range of applications, high working efficiency, high speed of spray spraying while driving, strong penetration of dust and fog bead adhesion can effectively save water consumption and reduce environmental pollution.

4, Remote control/manual compatibility, fast start, safe use, flexible and convenient, high cost performance;

5, Micro - motor control horizontal rotation, hydraulic motor control pitch Angle, change angle fast.
